Off-Grid Solar Panel System: A Complete Guide to Independent Power

Not all properties necessarily have reliable access to the electricity grid. Faraway houses, farms, cabins, workshops, and country houses can experience poor connections, regular blackouts, or lack of utility altogether. An alternative in such cases would be to generate and store your own power.

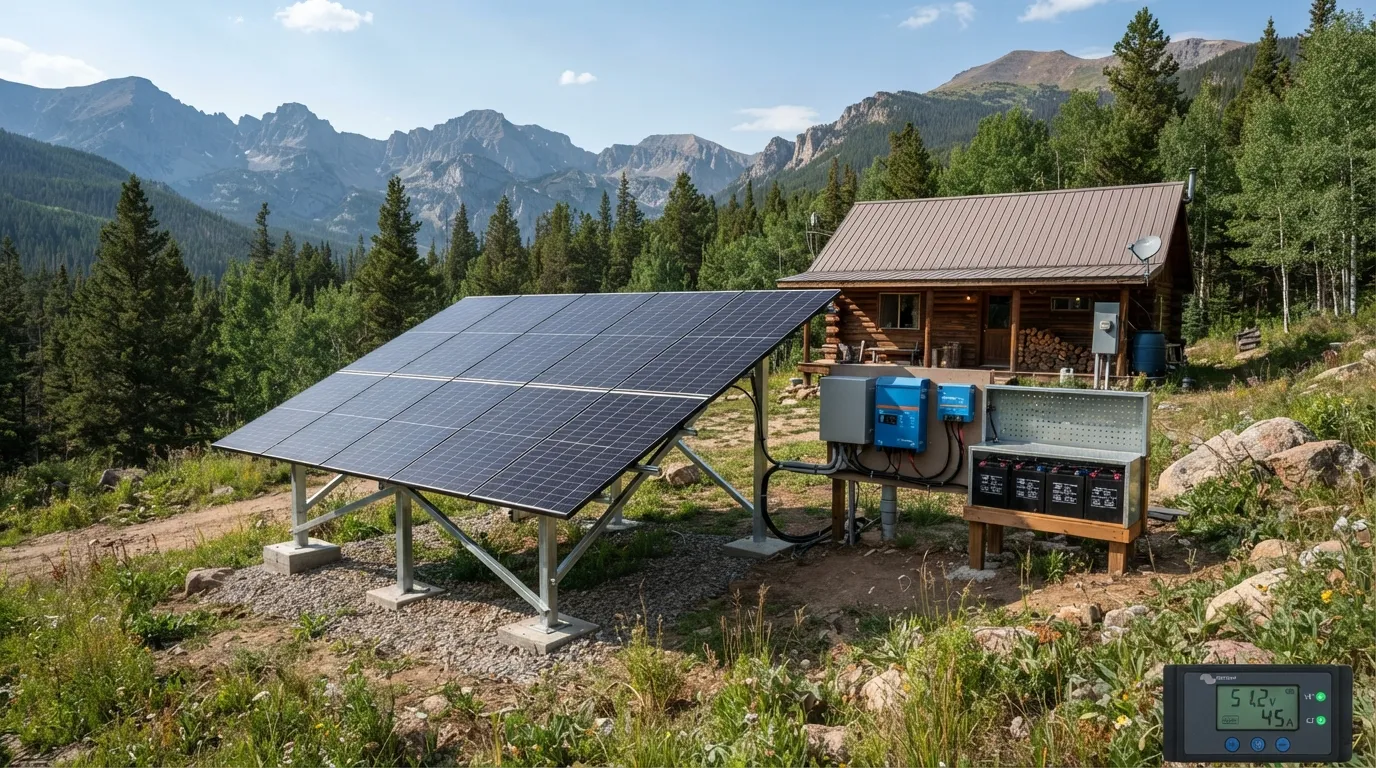

• An off-grid solar panel system is set up to produce electricity using sunlight, store excess energy in batteries, and power household or business loads without reliance on the utility grid. It forms a closed circuit of energy, whereby the solar energy is generated during the day, and the battery-powered electricity is used at night.
• An effective off-grid solar system is a combination of photovoltaic panels, an inverter, battery storage, and appropriate control equipment. The system should also be sized with a lot of care around the daily energy use, peak loads, seasonal sunlight, and anticipated system losses.

What is an Off-Grid Solar System?

• An off-grid solar panel system is a self-contained electricity system that does not have a permanent connection to the utility grid. It is also referred to as a standalone solar power system, stand-alone solar system, or independent solar power system. Photovoltaic solar panels produce DC electricity during the day.
• Part of that energy can be used to directly charge connected loads, and excess electricity can charge the battery bank. Stored energy can be used when solar production is low. This renders an off-grid home solar system especially handy for properties that have no or unreliable access to the grid.

What Does an Off-Grid Solar System Consist of?

A total system has several interconnected parts. They all work in different fields, and therefore it is important to select compatible equipment. A common off-grid PV system consists of:

•          Solar panels

•          Off-grid solar inverter

•          Solar battery storage

•          Solar battery bank

•          Solar charge controller

•          MPPT charge controller

•          Mounting structures

•          DC and AC protection devices.

•          System monitoring equipment

In other contemporary systems, the inverter is a combination of some of these functions into a single unit. This may make it easier to install and enhance communication between solar generation, batteries, and household loads.

Process of Generating and Storing Solar Power

The solar panels produce electricity when there is enough sunlight on the photovoltaic cells. But the production of solar power varies over the day.

• A normal array can generate its maximum output at midday, with the production being significantly less during early morning, late afternoon, or cloudy weather.
• An MPPT charge controller assists in deriving useful power out of the solar array by continuously monitoring the maximum power point of the solar array. It is able to optimize operating conditions with changing sunlight and panel temperature.
• Alternatively, a PWM solar charge controller may be used, although MPPT technology usually offers more flexibility to larger or more challenging solar installations.

When the electricity gets to the battery system, the storage capacity is determined by the voltage of the battery, the capacity of the battery, depth of discharge, and operating conditions.

Off-Grid Storage is Being Transformed by Lithium Batteries

LiFePO4 solar batteries are lithium iron phosphate batteries, which are becoming more common in modern off grid solar panel systems.

• LiFePO4 technology can achieve high cycle life, stable operation, and useful energy density when compared to traditional lead-acid batteries. The actual performance is based on the battery model, charging conditions, temperature, discharge rate, and battery management system.
• JSD Solar offers a product line of LiFePO4 home energy storage systems that are used in residential solar systems. Its site provides home batteries that have BMS monitoring and cycle-life specifications to store energy and provide backup.

To install an off-grid solar system with a lithium battery, battery compatibility with the inverter must be ensured before installation for homeowners.

EPS Backup Makes Independent Power More Feasible

• The EPS, or Emergency Power Supply, output is one handy feature of the J6KHB. The inverter provides a 6,000VA EPS rated output at 230VAC and states a switching time of less than 20 milliseconds.
• This enables battery energy to be stored to serve critical loads in case an external power source is not available.
• The inverter also provides pure sine wave output with less than 2% THD. Reduced harmonic distortion can be used to supply cleaner power to sensitive electronics and household equipment.

This combination can be useful with remote properties since the system is not only producing solar electricity, but also controlling stored energy and backup loads.

Knowing the Technical Numbers

There are several specifications that are worth considering when comparing an off-grid inverter.

• Maximum PV input voltage is the maximum DC voltage that the inverter can accept safely on the solar array.
• Maximum DC input current is the maximum amount of current that can be input into the inverter by the PV array.
• MPPT voltage range indicates the operating range within which the inverter can follow the solar array effectively.
• The compatibility with household electrical loads depends on the AC output voltage.
• Inverter efficiency is the measure of the efficiency of the conversion of DC energy to useful AC power.

The J6KHB is 99.9% MPPT efficiency, 97% Euro efficiency, and 97.6% maximum efficiency. Its peak battery charge and discharge efficiency are both quoted at 95%.

Conclusion

Once the system is designed correctly, an off-grid home can be a wonderfully simple experience. The sunlight is transformed into electricity, excess energy is stored as power, and the stored power is reliable electricity when the sun sets. JSD Solar provides solar inverters, lithium batteries, residential systems, and energy storage solutions for various applications. Visit the JSD Solar site or read the 48V 6kW Off Grid Hybrid Storage Solar Inverter to learn more about the technical specifications and design a solar solution to suit your energy requirements.
