Solar Inverter with Solar Panel: Complete Home Solar System Guide

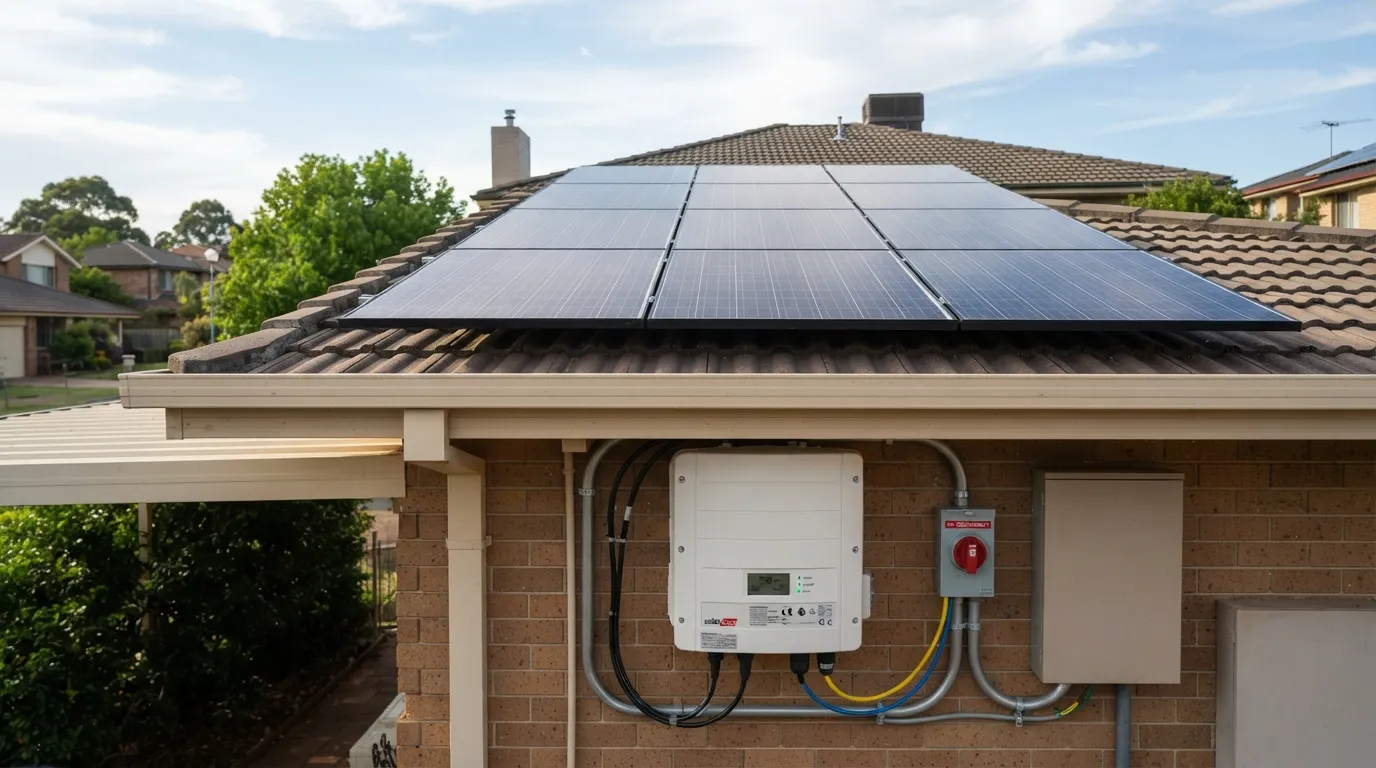

Solar Inverter with Solar Panel: How the Complete System Works

Solar panels use the sun to produce electricity, but the electricity that is produced is not readily usable in most household appliances. The electricity starts as direct current, or DC. Homes generally use alternating current, or AC. This is where an inverter is necessary.

• These two technologies are combined to produce useful household electricity by a solar inverter and a solar panel setup. The inverter handles DC-to-AC conversion, regulates the flow of solar power, and (depending on design) may also coordinate batteries and the utility grid.
• To homeowners, the combination is right, and photovoltaic solar panels can be converted to a practical solar power system with an inverter, which will help meet the daily electricity demand and enhance energy efficiency.

The Reason Why Solar Panels Require an Inverter

DC electricity is produced by solar modules. The majority of domestic appliances, though, use AC electricity. A solar inverter fills this gap. The inverter also has a number of significant electrical functions. It is able to measure voltage, control power output, measure the maximum power point of the solar array, and offer some protection against electrical faults. This renders the inverter far beyond a mere converter. It is a control center of a modern solar panel inverter system.

What is a Solar Panel and Inverter System?

A typical solar panel and inverter system consists of solar modules, an inverter, a mounting system, and electrical protection, cabling, and monitoring equipment. It can also incorporate:

•          Lithium battery storage

•          Battery management equipment

•          Grid connection equipment

•          Backup circuits

•          Energy monitoring

•          EV charging equipment

A simple grid-connected system can be as simple as panels and an inverter, whereas a home solar inverter system with energy storage will require other components.

The 6kW residential package offered by JSD Solar, as an example, integrates photovoltaic generation, battery storage, hybrid power conversion, and intelligent energy management into a single, coordinated setup. The package consists of eight 580W solar panels, a 48 V/51.2 V 200 Ah LiFePO4 battery, and 120 V/240 V split-phase solar inverter equipment.

Which Solar Inverter Type to Select

All inverters do not operate in a similar manner. The optimal option will be determined by the size, design, and intended use of the solar energy system.

String Inverter

A string inverter is used to connect multiple solar panels in series to create a string. The inverter can then be connected to multiple strings. This design is common as it provides a simple design and power conversion is centralized. But shading a part of a string can influence the performance of modules attached to it.

Micro Inverter

A micro inverter is mounted on a panel-by-panel basis. The modules convert their respective DC electricity to AC power. This may be beneficial on multi-orientation roofs or partially shaded roofs since panel-level conversion can mitigate the effect of a single underperforming module on the larger array.

Hybrid Solar Inverter

A hybrid solar inverter is a combination of solar conversion, battery, and grid management. It is able to redirect solar electricity to household loads, charge batteries, and communicate with the grid based on the system configuration. This renders the hybrid technology especially handy to homeowners who want to install a solar panel system with hybrid inverter technology and backup.

Solar Inverter Protection Makes the System Safer

Present-day solar power devices have various protection features. These characteristics assist in minimizing electrical hazards and safeguarding the inverter and other equipment. Common functions include:

•          Anti-islanding protection

•          Overvoltage protection

•          Overcurrent protection

•          Surge protection

•          Over-temperature protection

•          Short-circuit protection

•          Insulation monitoring

Depending on the model and installation, equipment may also have IP-rated enclosures. Various levels of protection against dust and water ingress may be provided by an IP65 inverter or IP66 inverter, so the choice of enclosure is significant in outdoor applications. Local electrical requirements should always be checked by a qualified installer before the system is commissioned.

When Battery Storage Makes Sense

A battery is not always required in a solar system. But with storage, the way generated electricity is used is altered.

• Solar electricity is typically used up as it is produced, and any excess energy may be exported to the grid where allowed.
• When using solar batteries as storage, the surplus production during the day can be stored and used in the future. This may be especially helpful when the demand for electricity in the house is greater in the evening.
• The 6kW package of JSD Solar is powered by a 48V/51.2V 200Ah LiFePO4 battery with a 6,000-cycle rating. The system will be able to store excess solar energy and supply power when solar production reduces.

This makes it a more adaptable solar panel power system for households that desire generation and storage of energy.

What is a High-Efficiency Solar System?

The highest headline rating does not necessarily make the solar inverter the best one to use with solar panels. Proper system design is based on the matching of each component.

Look for:

•          Proper panel and inverter size.

•          Appropriate MPPT voltage range.

•          Strong inverter efficiency

•          Proper DC input limits.

•          Reliable protection functions

•          Proper mounting

•          Effective monitoring

•          Battery compatibility where necessary.

•          Professional installation

A solar inverter with high-efficiency panels of high efficiency can work well, but the conditions of installation are important. Shading, dust, high temperatures, improper orientation, and improper electrical sizing can decrease the total output.

Create a Smarter Solar Energy System

Solar technology is most effective when the panels, inverter, storage, and household loads are considered as a system, not as individual products. A properly matched inverter is capable of converting solar electricity effectively, controlling energy flow, and providing the control required to have a reliable residential installation.

• The 6kW package of JSD Solar shows how these technologies can be integrated into a fully-fledged solar panel and inverter system, including eight 580W monocrystalline panels, LiFePO4 storage, split-phase output, and expandable setup.
• Regardless of whether you are installing a new rooftop or updating an existing energy system, it is always best to begin with the electrical needs and daily usage pattern. Then select the panels, inverter, and storage based on those requirements.

Conclusion

The panels harness the sunshine, yet the inverter provides that energy with a realistic route into your house. The selection of appropriate equipment may enhance reliability, energy control, and solar performance over the long term. Learn about the residential solar solutions of JSD Solar or the Complete 6kW Solar Kit to discover how panels, hybrid conversion, and battery storage can be combined in a full residential system.
