Solar Inverter with Battery: A Complete Guide to Solar Storage Systems

Solar energy is much more applicable when the power generated during the day can be stored to be used later. A solar inverter with battery is a solar generation, power conversion, and energy storage system that is coordinated in one system. It can assist homes to utilize additional of their own solar power, offer back-up, and lessen reliance on grid power.

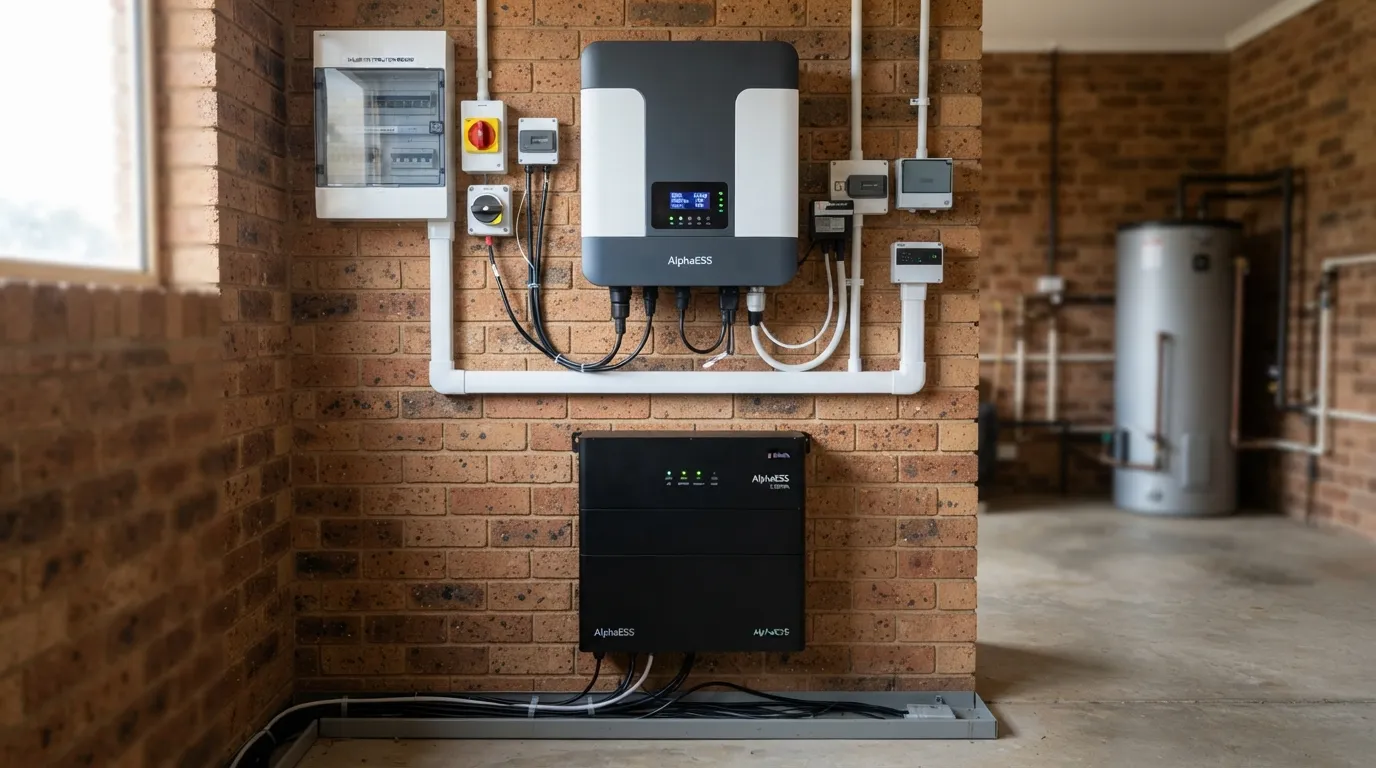

• A common installation consists of solar panels, a solar inverter, a solar battery, protection equipment, and monitoring controls. Depending on the system design, the inverter controls the current of electricity flowing between the photovoltaic array, battery, household loads, and utility grid.
• To homeowners who are thinking about renewable electricity, the interaction of these components is the initial step towards selecting a workable solar energy storage system.

Working of a Solar Inverter with Battery

A battery-powered inverter-based solar system has a relatively straightforward energy flow:

Sunlight- Photovoltaic Solar Panels- DC Electricity- Solar Inverter- AC Loads

In case the panels produce more electricity than the home requires, the excess can be channeled to the battery. Stored energy can be later transformed into usable AC electricity when there is a decrease in solar production. This process enables the solar self-consumption to proceed beyond sunset. A current-day solar inverter and battery system is thus able to control multiple energy sources simultaneously:

•          Solar energy production

•          Battery charging

•          Battery discharge

•          Household electricity consumption

•          Grid electricity

•          Backup power

The precise mechanism is determined by the grid-tied, hybrid, and off-grid systems.

What is the Rationale to Use Solar Panels with Battery Storage?

Solar panels are the most effective in the presence of sunlight. The demand for household electricity, however, does not necessarily follow the same pattern. As an illustration, a house can produce a lot of solar energy during the daytime but consume more energy in the evening when individuals come back home after work. In the absence of storage, surplus solar power can be sold to the utility grid where it is permitted by local regulations. That excess can be stored and utilized later with solar battery storage.

This can increase:

•          Solar self-consumption

•          Energy independence

•          Backup capability

•          Renewable electricity usage

•          Household energy flexibility

A battery-powered home solar inverter is especially beneficial in homes that would like to utilize more of their self-generated power.

What Does the Solar Inverter Do?

The electrical interface between the solar array, battery, and AC loads is the inverter. Most household appliances use AC, whereas solar panels and batteries use DC electricity.

• The inverter converts DC to AC to power household loads. The system also controls the charging process when the battery requires energy; this includes AC to DC charging in cases where the electricity is supplied via an AC source.
• Depending on its architecture, the equipment may also control solar generation, battery charging, grid interaction, and backup circuits.

These functions can be built into a single device with a hybrid solar inverter, eliminating the necessity of conversion equipment.

JSD Solar's 48V 6kW Hybrid Storage Inverter

The J6KHB by JSD Solar is a low-voltage (48 V) 6 kW hybrid storage solar inverter that is used to control solar generation, battery storage, and backup power. The manufacturer states a 6,000 VA nominal AC output and a maximum recommended DC input of 7,800W.  The inverter can work with lithium and lead-acid batteries, and the recommended battery voltage is 48 V; the specified battery voltage is 40 V to 58 V. Its maximum listed charge and discharge currents are 95A and 110A, respectively.  Its PV specifications are:

•          Maximum recommended DC power: 7,800W

•          Maximum DC voltage: 500V

•          Nominal DC operating voltage: 360V

•          MPPT voltage: 70 V to 480 V

•          MPPT range at full load: 220V to 500V

•          Maximum input current: 18A per MPPT

•          Two MPP trackers

These values come in handy when deciding on the compatibility of a given solar array with the inverter in terms of electrical compatibility.

Residential Solar Lithium Batteries

Lithium batteries have become common in recent residential solar energy systems due to their potential to provide high energy density and long cycle life with proper design and operation.

• Lithium iron phosphate batteries, also known as LiFePO4 batteries, are particularly popular in domestic energy storage.
• An appropriate battery must be compatible with the voltage range and communication needs of the inverter. Another factor to check is whether the inverter has the BMS communication protocol of the battery.
• JSD Solar J6KHB supports lithium and lead-acid batteries, and offers CAN and RS485 communication interfaces, Wi-Fi, LAN, and DRM connectivity.

Backup Power in Case of Grid Outage

Power continuity is one of the primary reasons why homeowners opt to install a solar inverter with battery backup. A typical grid-tied solar inverter can be de-energized during a grid outage to prevent accidents. A battery-capable hybrid or off-grid system can be used to supply power to specified backup loads when properly set up.

JSD Solar J6KHB has an EPS, or Emergency Power Supply, output of 6,000VA. Its switching time is listed as less than 20 milliseconds, 230 VAC at 50/60Hz and less than 2 percent total harmonic distortion.

This kind of setup can accommodate the following important equipment:

•          Lighting

•          Refrigerators

•          Communication equipment

•          Computers

•          Home appliances

•          Security systems

The real backup time is dependent on battery capacity and load connected.

Make Daylight Power After Dark

When generation and storage are built as a single system, solar becomes much more flexible. An appropriately matched inverter can be used to convert solar electricity, control battery charging, provide household loads, and provide backup power during the unavailability of the grid.

• JSD Solar J6KHB is a 6kW AC power, 7.8kW suggested PV input, dual MPPT tracking, battery adaptable, EPS backup, and numerous monitoring interfaces in a small wall-mounted enclosure. It is IP65-rated and is naturally cooled.
• When homeowners intend to install a solar power system including a battery, the most significant thing to do is to coordinate the panel capacity, inverter power, battery storage, and daily consumption as a single design.

Conclusion

Having a solar inverter with battery in the garage is not the actual benefit of solar storage. It is possessing a system that is aware of when to produce, store, convert, and supply energy. When considering residential backup power or higher energy independence, consider the solar energy offerings of JSD Solar and consider the 48V 6kW Off Grid Hybrid Solar Inverter in more detail and its system compatibility.
