With the increasing popularity of solar power for homes and businesses, there is a growing interest in finding efficient and effective methods for storing the energy produced by the solar panels.With the increasing adoption of solar energy for homes and businesses, there is a growing need for efficient and effective methods of storing the energy generated by the solar panels. Solar battery storage allows for the utilization of solar energy during the night time, less reliance on the electricity grid, and as a backup electricity source during outages.

The first major choice in designing a solar-plus-storage system is whether to go AC coupled or DC coupled.

Both technologies are able to store solar power cost effectively, but they are different and have different applications. It is a function of whether you are new to solar, need to add batteries to an existing solar installation, how much electricity you will use, how much you need to back up, and your budget.

This guide covers the difference between AC coupled vs DC coupled solar battery storage, its benefits and drawbacks, efficiency, installation and choosing between the two.

What Is AC Coupled Solar Battery Storage?

An AC coupled battery storage system is the type of battery storage system that is connected to the alternating current (AC) side of the electrical system, including the solar inverter and the battery inverter.

Typically, the solar panels produce direct current (DC) electricity in an AC coupled system. The solar inverter changes that DC electricity into an AC electricity that is used in the residence or business.

If there is more solar power than needed, the AC power is directed to the battery inverter to convert it back to DC power for storage in the battery.

Later, when the battery provides electricity, the stored direct current power is again changed back to alternating current power, allowing it to be used for household appliances or commercial equipment.

How AC Coupling Works

The energy flow typically looks like this:

Solar Panels → Solar Inverter → AC Power → Battery Inverter → Battery

When stored energy is needed:

Battery → Battery Inverter → AC Power → Loads

Because AC coupled systems use separate solar and battery inverters, they are often highly flexible.

What Is DC Coupled Solar Battery Storage?

A DC coupled battery storage system connects solar panels and batteries on the direct current side of the system.

Solar panels naturally generate DC electricity, and batteries also store electricity as DC power. In a DC coupled system, solar energy can move directly from the solar panels to the battery without first being converted into AC electricity.

A hybrid inverter or solar storage inverter typically manages the energy from both the photovoltaic system and battery bank.

How DC Coupling Works

The energy flow typically looks like this:

Solar Panels → DC Power → Battery

When electricity is needed:

Battery → Hybrid Inverter → AC Power → Loads

Because fewer power conversions are required, DC coupled systems can offer higher energy efficiency in many applications.

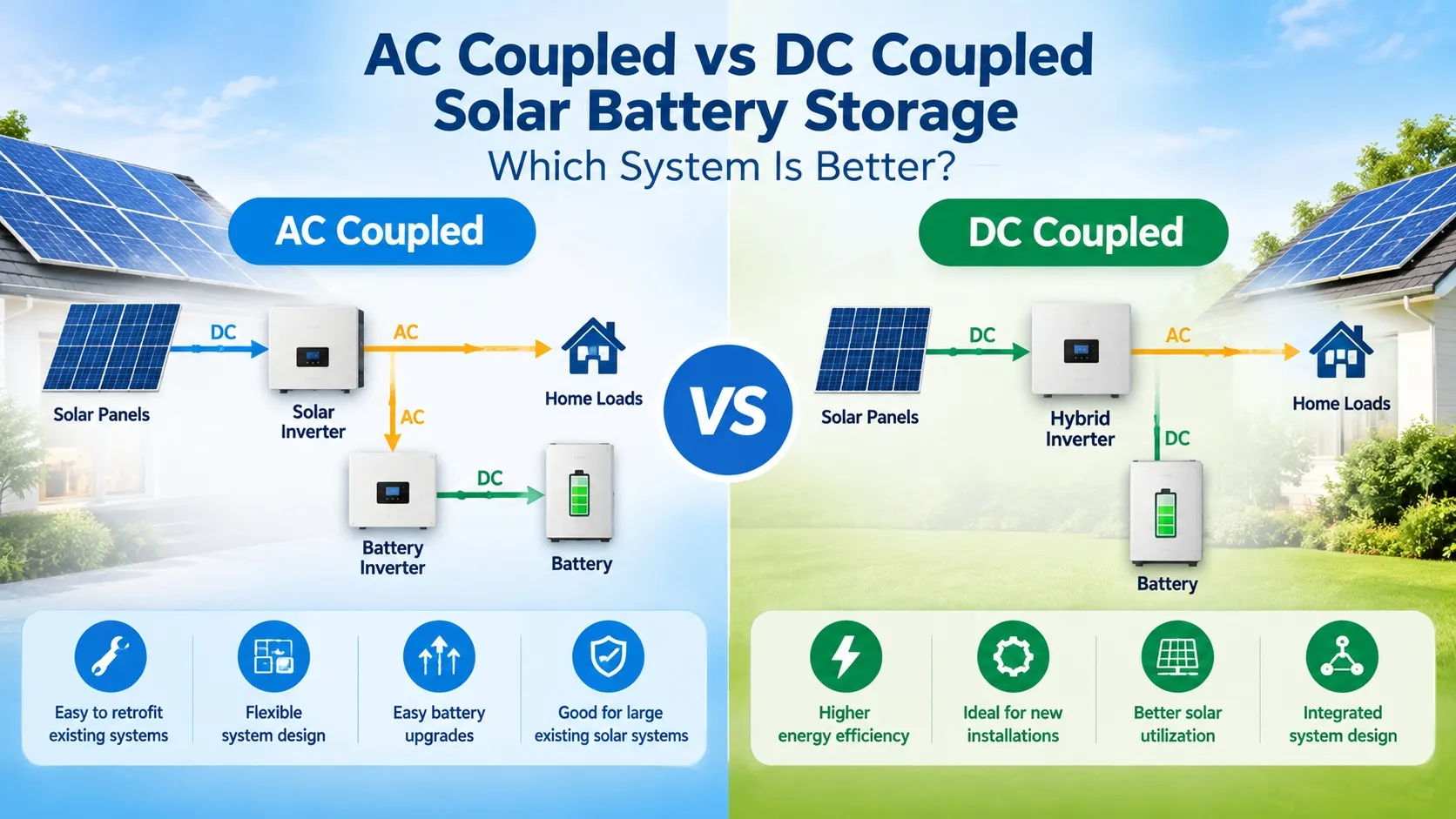

AC Coupled vs DC Coupled: The Main Difference

The biggest difference between AC coupled and DC coupled solar battery storage is where the battery connects to the solar energy system.

Both systems can provide reliable solar energy storage, but their performance and installation requirements are different.

Advantages of AC Coupled Battery Storage

1. Ideal for Retrofitting Existing Solar Systems

One of the biggest advantages of AC coupled battery storage is its compatibility with existing solar installations.

If a home already has solar panels and a grid-tied solar inverter, an AC coupled battery can often be added without replacing the existing inverter.

This makes AC coupling an attractive option for homeowners who installed solar panels years ago and now want to add battery storage.

2. Flexible System Design

AC coupled systems use separate components for solar generation and battery storage.

This allows greater flexibility when selecting equipment. In some cases, homeowners can choose a battery system independently from the original solar inverter.

This modular design can also make future system expansion easier.

3. Easier Battery Upgrades

Because the battery system is relatively independent from the solar inverter, upgrading or replacing battery equipment may be simpler in certain installations.

This flexibility can be valuable for users planning to expand their energy storage capacity in the future.

4. Good for Large Existing Solar Systems

AC coupled storage can be particularly useful when a large solar system is already installed.

Instead of redesigning the entire photovoltaic system, the battery can be integrated into the AC electrical infrastructure.

Disadvantages of AC Coupled Battery Storage

1. More Energy Conversion Losses

The main disadvantage of AC coupling is that electricity may need to be converted multiple times.

For example:

DC from solar panels → AC → DC for battery storage → AC for appliances

Every conversion creates a small amount of energy loss.

Although modern inverters are highly efficient, multiple conversions can reduce the total efficiency of the solar storage system.

2. More Equipment May Be Required

AC coupled systems typically require both a solar inverter and a battery inverter.

This can increase equipment complexity and potentially increase installation costs.

3. More Complex Backup Configuration

Depending on the system design, backup power functionality may require additional equipment such as transfer switches or backup controllers.

Professional system design is important when reliable emergency power is required.

Advantages of DC Coupled Battery Storage

1. Higher Energy Efficiency

DC coupled solar battery storage can reduce unnecessary power conversions.

Since both solar panels and batteries operate using DC electricity, solar energy can often charge the battery directly.

This can improve overall system efficiency and maximize the amount of solar energy stored for later use.

2. Excellent for New Solar Installations

DC coupling is often an excellent choice for new solar-plus-storage projects.

When solar panels and batteries are installed at the same time, the entire system can be designed around a hybrid inverter.

This can simplify the system architecture and reduce the number of separate components.

3. Better Solar Energy Utilization

With fewer conversion stages, more of the electricity generated by solar panels can potentially reach the battery.

This is particularly valuable for homeowners and businesses focused on maximizing solar self-consumption.

Higher self-consumption means using more solar electricity directly instead of purchasing electricity from the grid.

4. Simplified System Architecture

A DC coupled system can combine multiple functions into a hybrid inverter.

The inverter may manage:

• Solar power generation
• Battery charging
• Battery discharging
• Grid interaction
• Backup power
• Energy monitoring

This integrated design can simplify installation and system management.

Disadvantages of DC Coupled Battery Storage

1. Less Convenient for Existing Solar Systems

DC coupled storage can be more difficult to add to an existing solar installation.

If the existing system already uses a standard grid-tied solar inverter, adding DC coupled batteries may require replacing or modifying important equipment.

This can increase installation costs.

2. Equipment Compatibility Is Important

Solar panels, batteries, battery management systems, and hybrid inverters must be properly matched.

Voltage ranges, communication protocols, battery capacity, and power ratings must all be considered.

For this reason, system compatibility is an important factor when designing a DC coupled storage solution.

AC Coupled vs DC Coupled: Which Is More Efficient?

In general, DC coupled systems can offer higher efficiency for storing solar energy because they require fewer DC-to-AC and AC-to-DC conversions.

For example, solar electricity in a DC coupled system can often move directly into the battery.

An AC coupled system may require additional conversion stages before the energy reaches the battery.

However, efficiency is not the only factor that matters.

Modern AC coupled systems can still deliver excellent performance, and the best choice depends heavily on the specific installation.

For an existing solar system, the cost and complexity of converting everything to DC coupling may outweigh the potential efficiency benefits.

Which System Is Better for Existing Solar Installations?

For most existing grid-tied solar systems, AC coupled battery storage is often the easier solution.

The existing solar inverter can remain in place while a compatible battery inverter and energy storage system are added.

This reduces the need for major modifications to the original solar installation.

AC coupling is particularly attractive for:

• Existing residential solar systems
• Commercial solar retrofits
• Solar systems with relatively new inverters
• Projects requiring flexible battery expansion

Which System Is Better for New Solar Projects?

For a completely new installation, DC coupled battery storage is often a highly efficient option.

A solar-plus-storage system can be designed as a complete solution from the beginning.

A hybrid inverter can manage both solar generation and battery storage, reducing system complexity and improving energy efficiency.

DC coupling is particularly suitable for:

• New residential solar installations
• Off-grid solar systems
• Hybrid solar systems
• High solar self-consumption applications
• Projects designed around battery storage from the beginning

AC Coupled vs DC Coupled for Backup Power

Both AC coupled and DC coupled systems can provide backup power.

However, backup performance depends on more than the coupling method.

Important factors include:

• Battery capacity
• Inverter output power
• Backup load requirements
• Transfer speed
• Solar generation capacity
• System configuration

A homeowner who only needs to power lights, Wi-Fi, and essential appliances may require a much smaller system than a business supporting critical equipment.

Before choosing a solar battery storage system, users should calculate their expected backup loads and required backup duration.

How to Choose Between AC Coupled and DC Coupled Battery Storage

When comparing AC coupled vs DC coupled solar battery storage, consider the following questions.

Do You Already Have Solar Panels?

If you already have a solar system, AC coupling may provide a simpler and more cost-effective upgrade path.

Are You Installing a New Solar System?

If solar panels and batteries are being installed together, DC coupling may provide higher efficiency and a more integrated system.

Is Maximum Efficiency Important?

DC coupled systems typically reduce energy conversion losses and can maximize solar energy utilization.

Do You Plan to Expand the System?

AC coupled systems can offer excellent flexibility for adding battery storage to existing solar infrastructure.

What Are Your Backup Requirements?

The battery size and inverter capacity should be designed around your actual energy needs rather than coupling type alone.

Final Thoughts: AC Coupled vs DC Coupled Solar Battery Storage

No single solution is best for all solar energy projects.

AC coupled battery storage is flexible, modular and perfect for the addition of batteries to existing solar systems.

Compared to the DC separated design, DC coupled battery storage can be more efficient, and is a great solution for many new solar-plus-storage systems.

It's up to you to decide which is the optimal choice based on your existing solar setup, budget, energy use, battery needs, and plans for future expansion.

When considering a solar battery storage system, consider the whole system, not just AC coupling or DC coupling. Installing a well-designed system can help optimize solar energy usage, enhance energy independence, minimize grid electricity usage and ensure reliable back-up power when it's needed.
