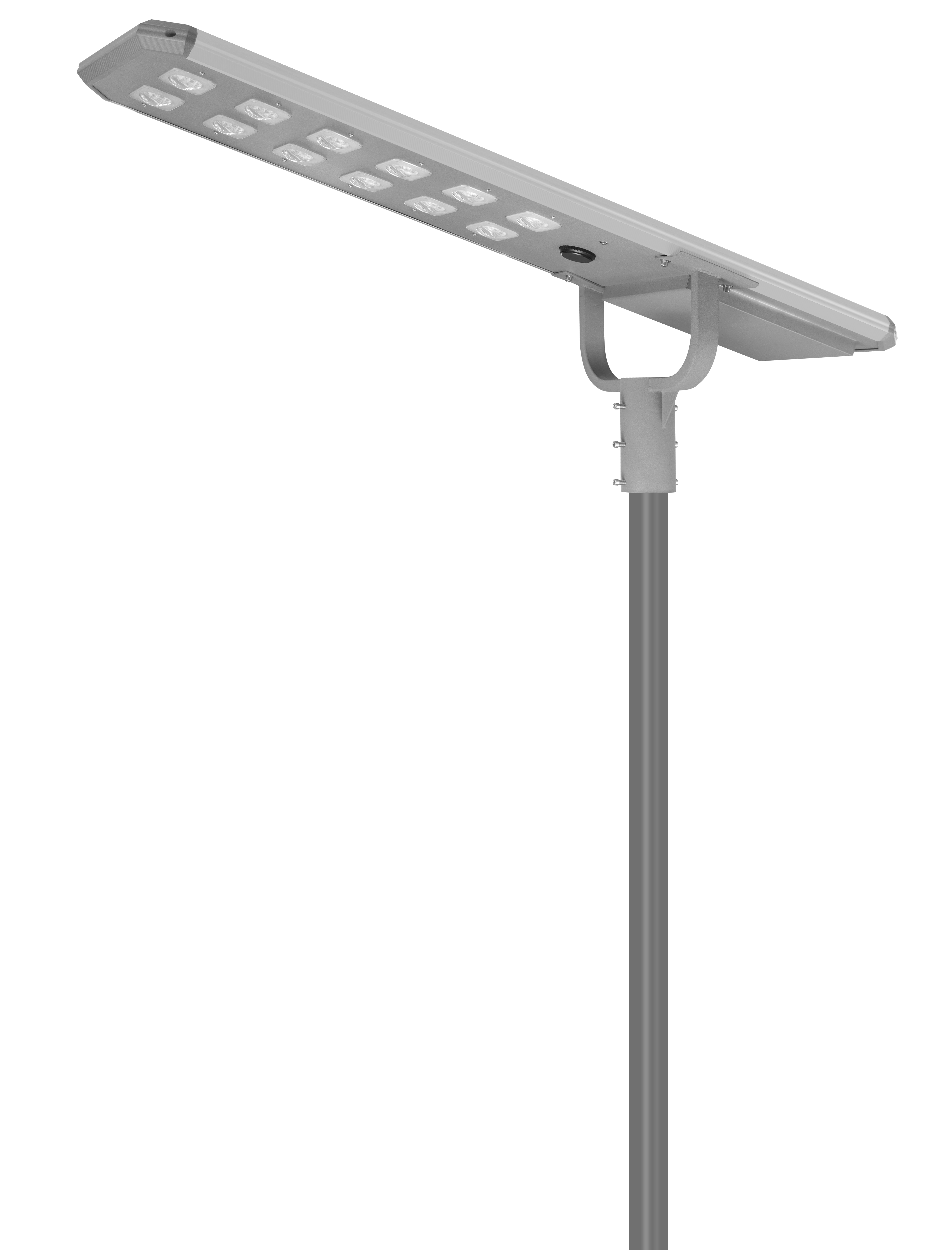

All-in-one Solar Street Light, TS series 80W/100W

All-in-one design | 6000K color temperature | 20000-28000LM

SDSolar’s TS Series 30 ALL-IN-ONE Solar Street Light (80W/100W) showcases a sleek, modern housing with a uniquely engineered structure for effortless lamp size extension, ideal for scalable projects. It offers flexible COB/SMD LED chip choices to tailor brightness, paired with gemstone lenses that deliver wider illumination angles and superior light transmission. The all-in-one design integrates solar panel, controller, and battery for simplified installation. An optional smart IOT system with GPRS/LoRa connectivity allows real-time remote monitoring, fault detection, and centralized management via a remote monitor center, making it perfect for urban streets, commercial areas, and large-scale outdoor lighting deployments.

Key features

Modern designed housing
More power optional.
COB/SMD LED chip optional.
Gemstonelenses,wider anglesand higher transparency.
Specialydesigned structure foreasy extension of the lamp size.

SEND INQUIRY

Back to Product List

Overview

Key Parameters

FAQs

Contact

Smart Solar Lighting System With Integrated LED And Energy Storage

Designed for modern outdoor lighting applications, the all in one solar street light combines solar panels, LED lighting, battery storage, and intelligent control functions into one compact structure. The integrated design eliminates complex wiring between separate components while providing flexible installation options for streets, pathways, residential areas, industrial zones, and public spaces. By using renewable solar energy during the day and stored power at night, the system provides independent illumination without relying on traditional electricity networks.

IoT Solar LED Street Light With Expandable Lighting Design

The integrated structure brings together energy generation, storage, and lighting control in a single housing. Optional smart communication functions allow remote monitoring and management, helping operators check lighting status and adjust operation settings for different outdoor environments.

Integrated solar panel, lithium battery, LED module, and controller design
COB and SMD LED options for different brightness requirements
Gemstone lens technology for wider light distribution and higher transparency
Optional GPRS and LoRa communication for remote monitoring
Expandable lamp structure for different lighting configurations
Weather-resistant housing for outdoor installation
Automatic lighting control based on environmental conditions

The optical design directly affects outdoor lighting coverage and energy usage. Different LED configurations and lens selections allow the system to achieve suitable brightness distribution for roads, walkways, parking areas, and public facilities. The compact structure reduces installation complexity while maintaining a clean appearance.

Battery Powered Outdoor Lighting With Remote Management Capability

The built-in battery stores solar energy collected during daylight hours and releases power according to programmed lighting schedules. Intelligent controllers regulate charging and discharging processes to maintain stable operation during different weather conditions.

For large outdoor lighting projects, remote monitoring can simplify maintenance planning by providing access to operating information without visiting every installation point. Communication options such as GPRS and LoRa allow the lighting network to adapt to different management requirements.

Long-Term Solar Street Lighting Solution For Outdoor Applications

Outdoor lighting systems must operate under changing temperatures, rainfall, dust exposure, and seasonal sunlight variations. A properly designed solar lighting structure helps maintain consistent performance while reducing dependence on external power infrastructure.

JSDSolar develops all in one solar street light solutions with integrated LED technology, lithium battery storage, optional IoT communication, and scalable configurations. The product range supports street lighting projects requiring independent energy supply, flexible installation, and intelligent outdoor lighting management.

Technical Data

Technical Parameter
Model	TS-80	TS-100
Solar module	80W	100W
Luminous	190LM/W
Working mode	Light control and time control
Solar panel charge time	5 Peak sun hours
Working time alight pattern	>=12hours
Raining days backup	3days
Color temperature	6000k
Induction angle	70°*140°
Light pole diameter	76mm
Installation Height	10~12m
Installation Distance	25~30m
Storage temperature	0-55℃
Operating humidity	<=95%RH
Charging temperature	0-55℃
Discharging temperature	-10℃-60℃
Recommanded install height	6-8m	7-8m
Product demensions	134038060mm	157038060mm
Package dimensions	1390430180mm(2PCS/CTN)	1620430180mm(2PCS/CTN)
Product G.weight	26.5kg(2PCS/CTN)	29.6kg(2PCS/CTN)
Brackets package parameter	1060400360mm(10PCS/CTN)
Brackect gross weight	21.5kg(10PCS/CTN)

Common Questions

How do I select the appropriate model for my project's installation height and lighting requirements?
For installation heights of 6-8m, the TS series offers models with max lumens (20000LM-28000LM). Choose a higher wattage model (e.g., TS-80for 20000LM) for areas requiring stronger illumination. Refer to the technical parameters for detailed specifications .

What is the battery lifespan and warranty coverage for large-scale projects?
The LiFePO4 lithium batteries support over 2000 charge-discharge cycles and come with a 5-year warranty for 90% output power and a 25-year warranty for 80% output power, ensuring long-term reliability for project deployments .

Can the solar street lights integrate with smart city management systems for remote monitoring?
Yes, the optional IOT LoRa system supports GPRS/3G/4G connectivity, enabling real-time remote monitoring, fault alarms, and parameter adjustment via Google map integration. It allows unified management across large-scale projects without regional limitations .

What installation precautions should be taken to ensure optimal performance in project sites?
Ensure solar panels face true south in the Northern Hemisphere or north in the Southern Hemisphere. Avoid shading from structures/trees and prevent artificial light sources (e.g., advertising boards) from triggering day mode. Peel off the solar panel protective film to activate charging .

How does the system perform in extreme weather conditions, and what protection features are included?
The lights have an IP68 waterproof rating and operate in temperatures from -20°C to +60°C. The MPPT controller includes multiple protections (overcharge/over-discharge, short circuit, etc.), ensuring stability in harsh environments .

What technical support is available for large-scale project deployments and maintenance?
JSD Solar provides full digital MPPT control technology (tracking efficiency >99%) and intelligent charge-discharge management. For project-specific needs, contact our team for customized solutions and post-installation support .
