Double-sided solar street light, JSDSolar DSC-X series

Philips LED chips | Double-sided solar charging | 9000-18000LM

The DSC-X Double-Sided Solar Street Light by JSDSolar is a high-performance outdoor lighting solution designed for municipal, roadway, and large-scale projects. Its innovative dual-panel design captures 20% more solar energy , paired with 20% efficient PV modules to power Philips LED chips delivering 9000-18000LM at >180 lm/W . The fourth-generation MPPT controller ensures >99% tracking efficiency and 98% charge conversion, with full protection against overcharge, short circuits, and more . A robust LiFePO4 battery offers 4-5x more capacity than lead-acid batteries, supporting 2000+ cycles and operating in -20°C to +60°C climates , backed by a 5-year warranty for 90% output and 25 years for 80% . With IP68 waterproofing and adjustable LED angles , it suits 10-12m installations. Optional IOT LoRa system enables remote monitoring, fault alerts, and Google Maps integration for smart management .

Key features

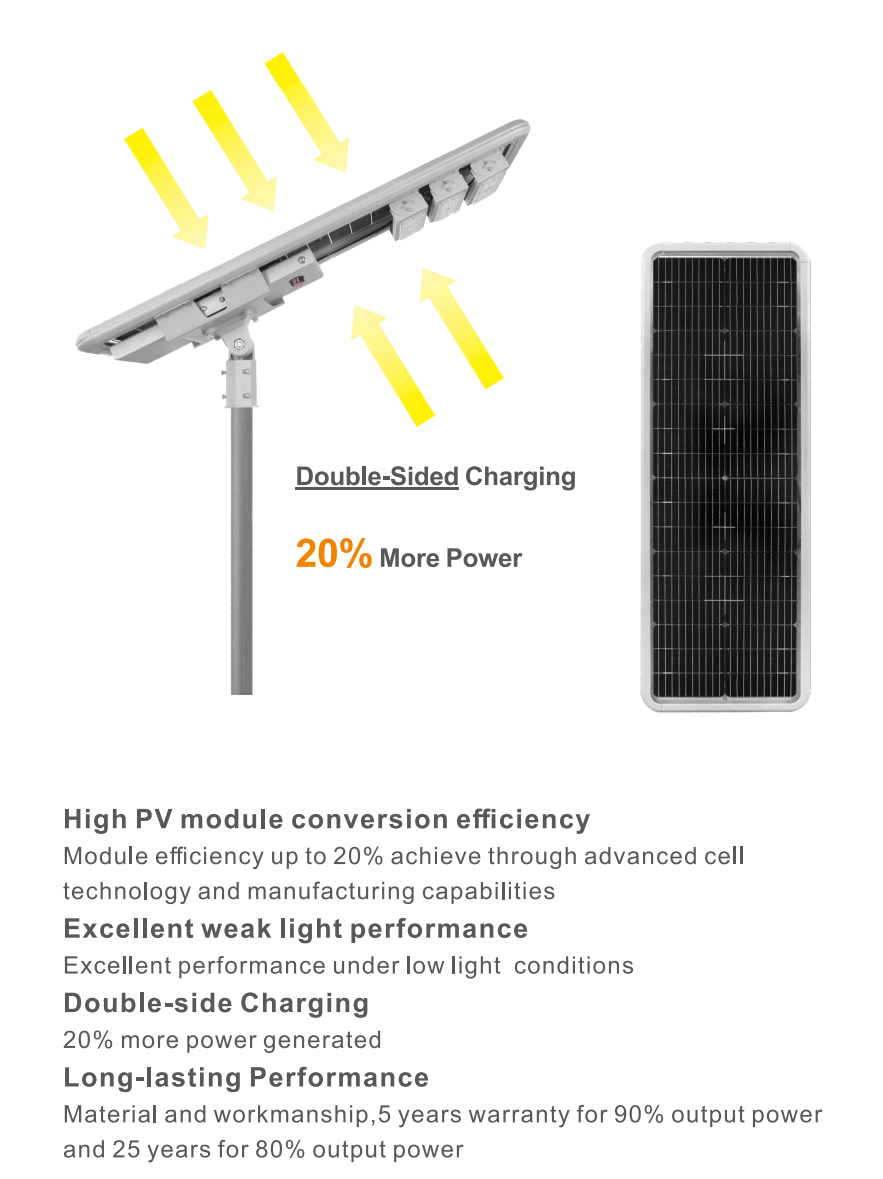

Double-sided charging design generates 20% more power than traditional solar panels .

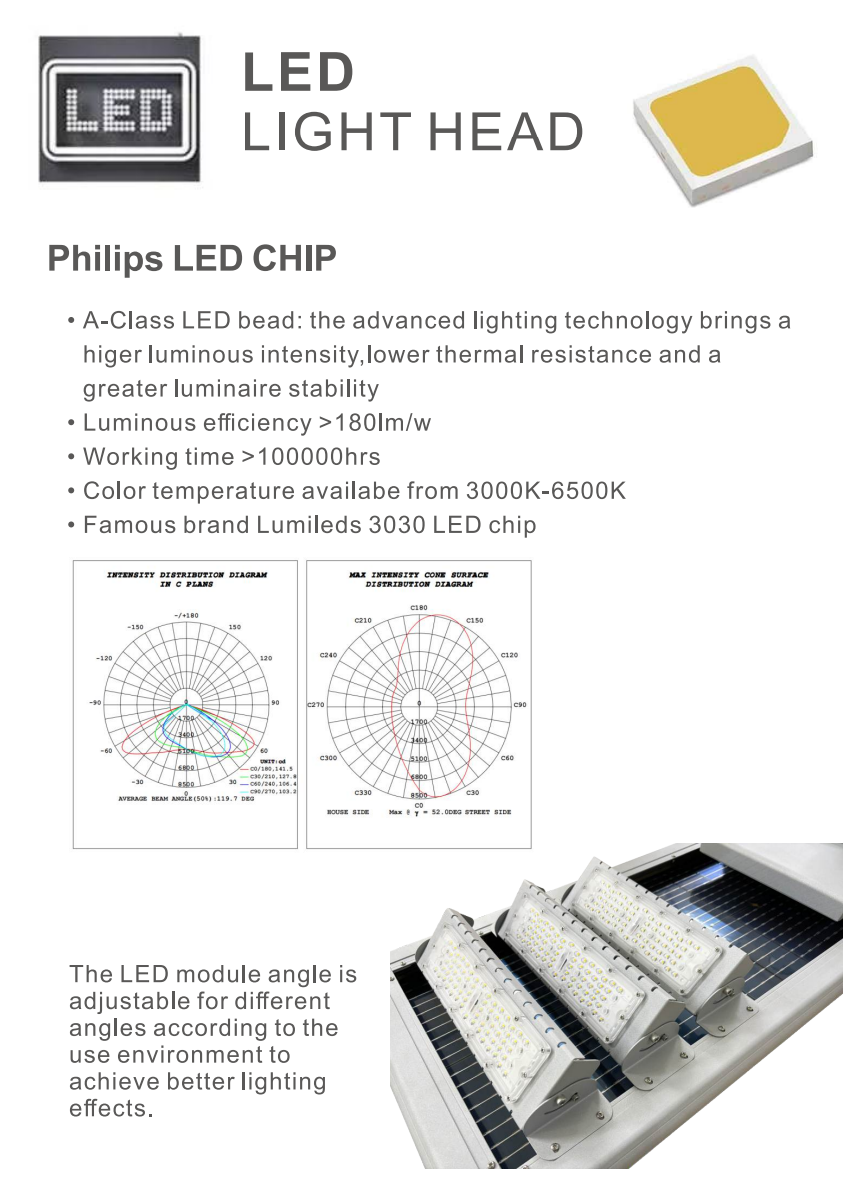

Philips LED chips offer >180 lm/W luminous efficiency and 100,000+ hours lifespan .

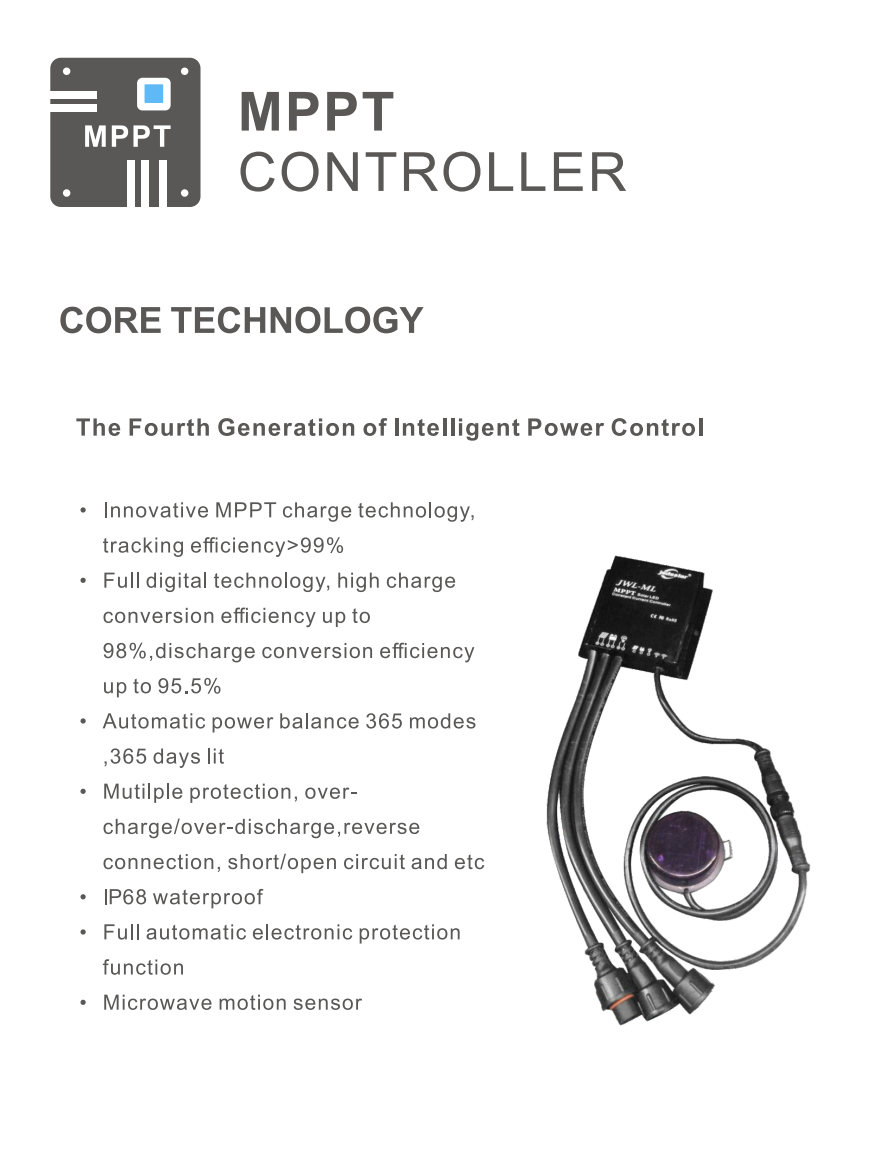

Intelligent MPPT controller with >99% tracking efficiency and full digital protection .
LiFePO4 lithium battery provides 2000+ cycles and 5-25 year warranty .
IP68 waterproof rating and -20°C to +60°C operating range .

SEND INQUIRY

Back to Product List

Overview

Product details

Key Parameters

FAQs

Contact

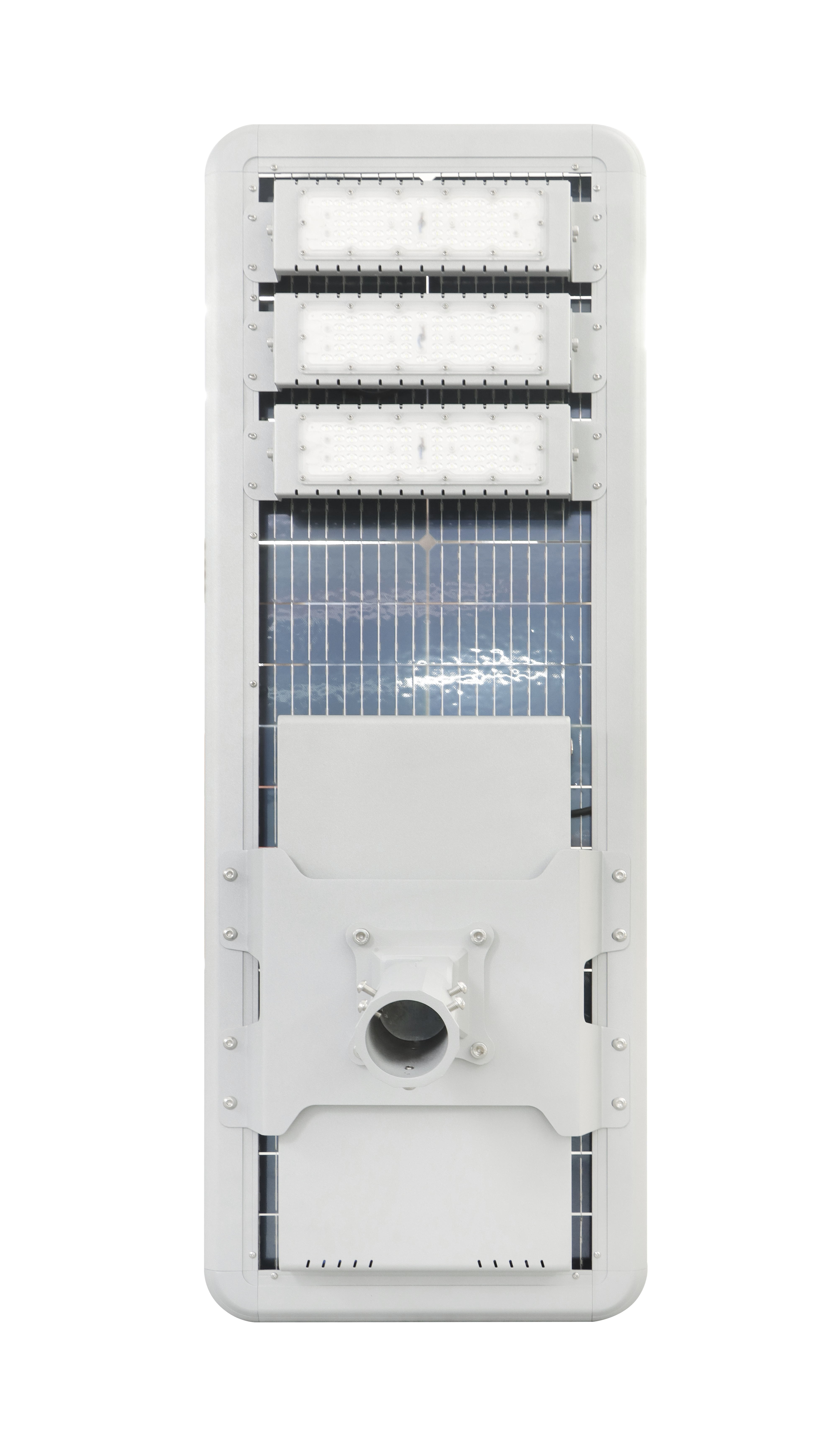

Dual Panel Solar Lighting System With High Coverage LED Illumination

Engineered for wider outdoor lighting coverage, the double sided solar street light uses dual solar panels and dual-direction illumination to improve energy collection and light distribution. The DSC-X series combines Philips LED chips, LiFePO4 battery storage, and intelligent charging control to support reliable operation for roads, urban areas, pathways, and public infrastructure. The two-sided structure increases solar harvesting capability while maintaining a balanced appearance for modern lighting projects.

Philips LED Solar Street Light With Double-Sided Power Generation

Dual-panel charging allows the lighting system to capture sunlight from different directions throughout the day. Combined with high-transparency optical lenses and Philips LED technology, the lamp provides wider illumination coverage with controlled brightness distribution.

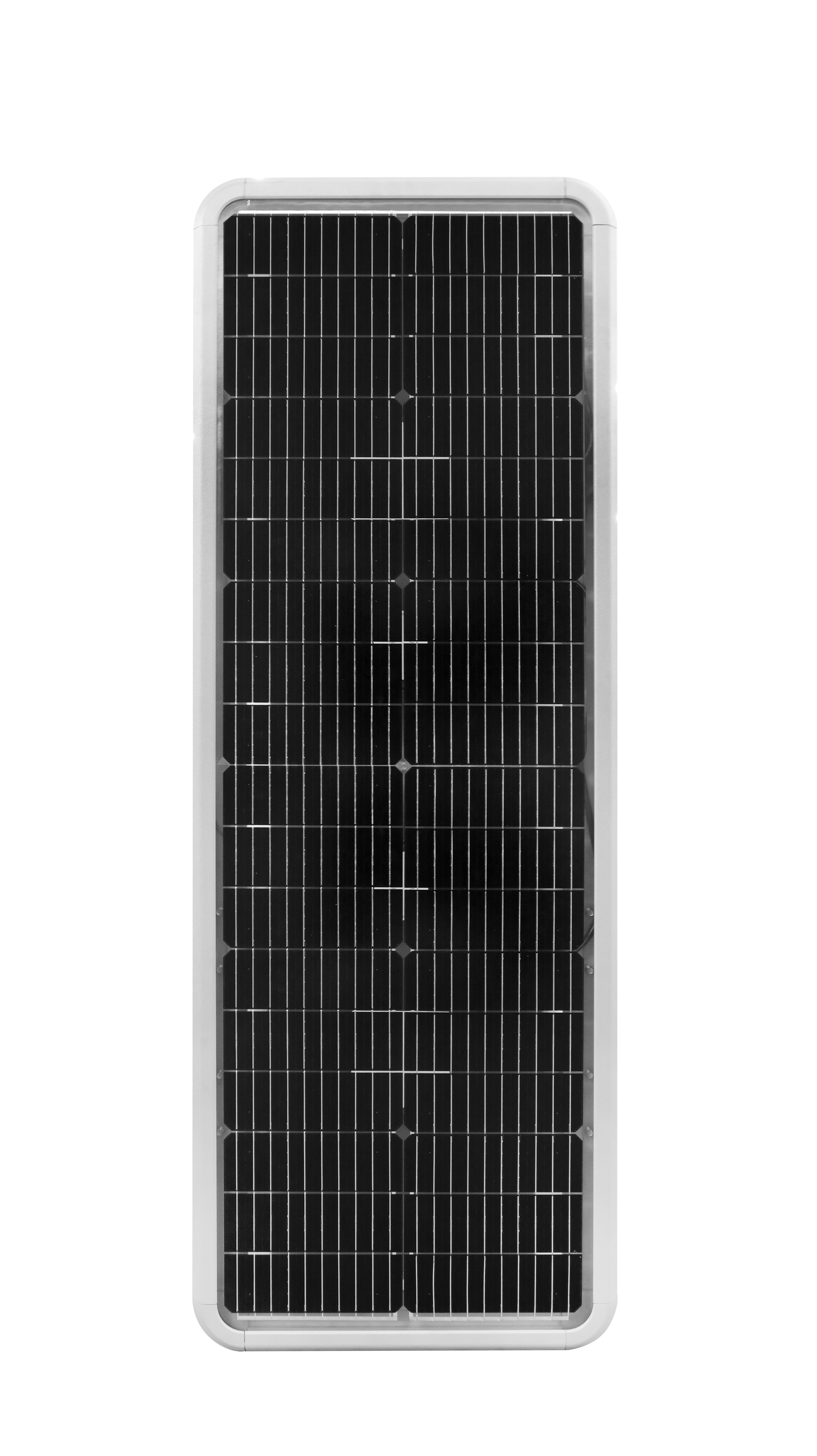

Dual solar panels for increased energy collection capability

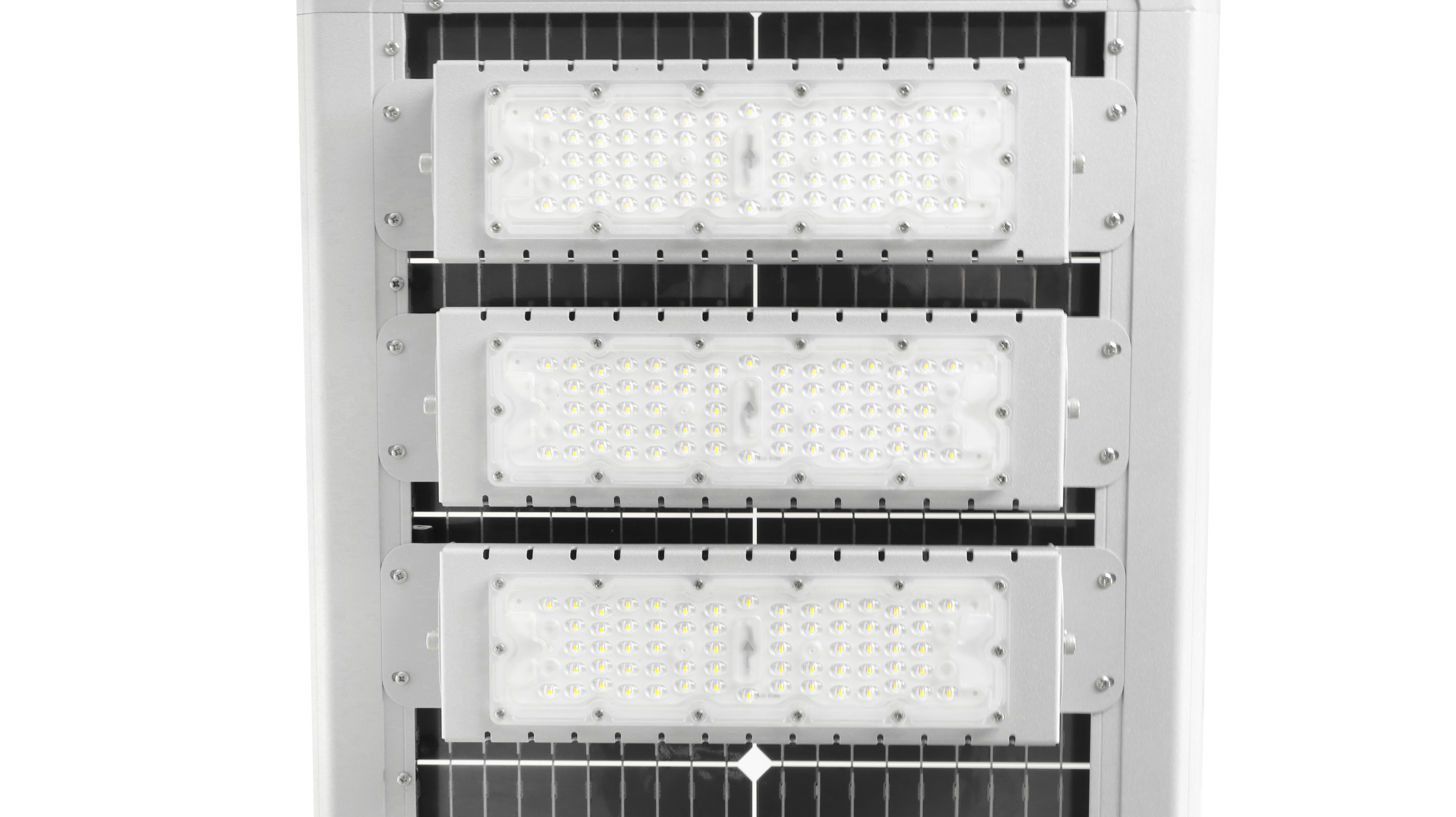

Philips LED chips with 9000–18000LM brightness options

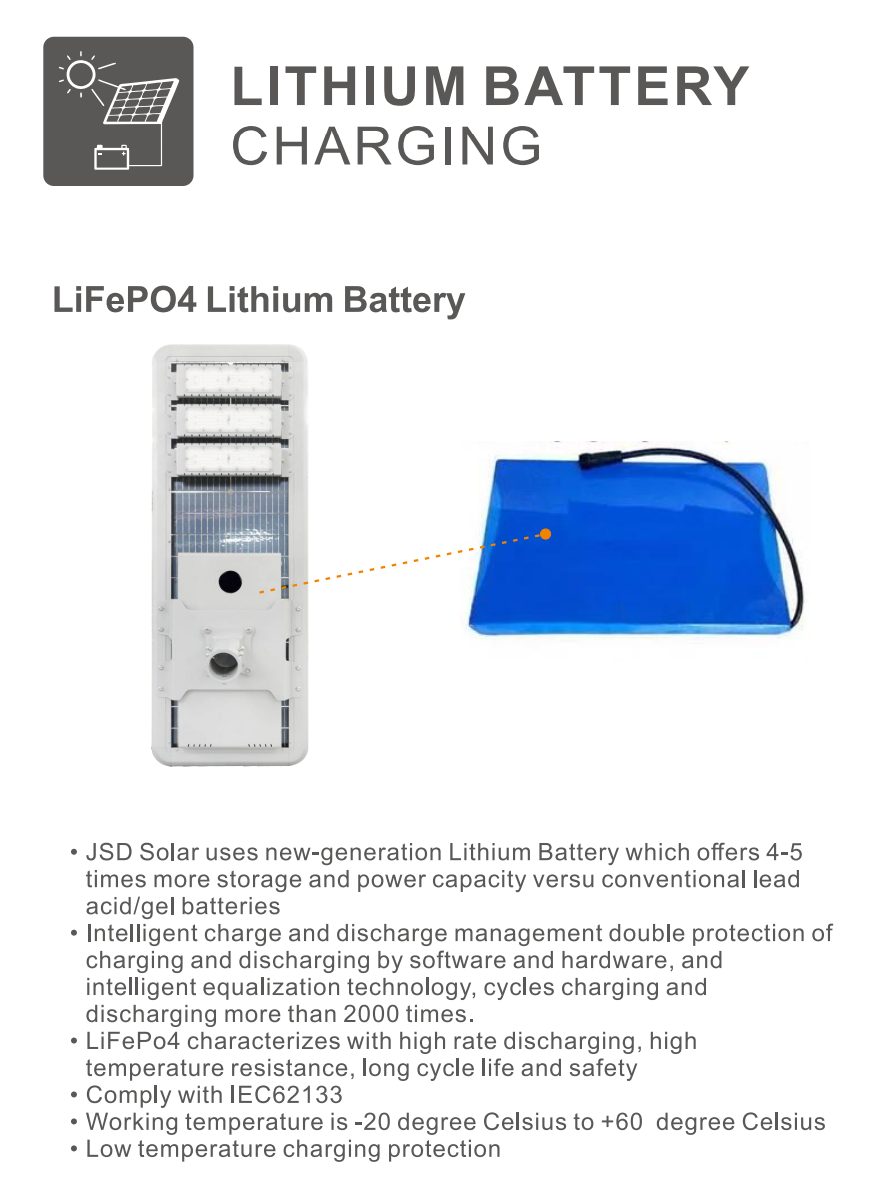

LiFePO4 battery with long cycle performance
MPPT controller for improved solar charging management
IP68 waterproof protection for outdoor environments
Optional IoT LoRa communication for smart lighting networks
Programmable lighting schedules for extended operation

The optical system is designed to improve road visibility while reducing unnecessary light loss. Different LED configurations allow adjustment according to installation height, road width, and lighting requirements. The dual-sided design works especially well for locations where light coverage from both directions is required.

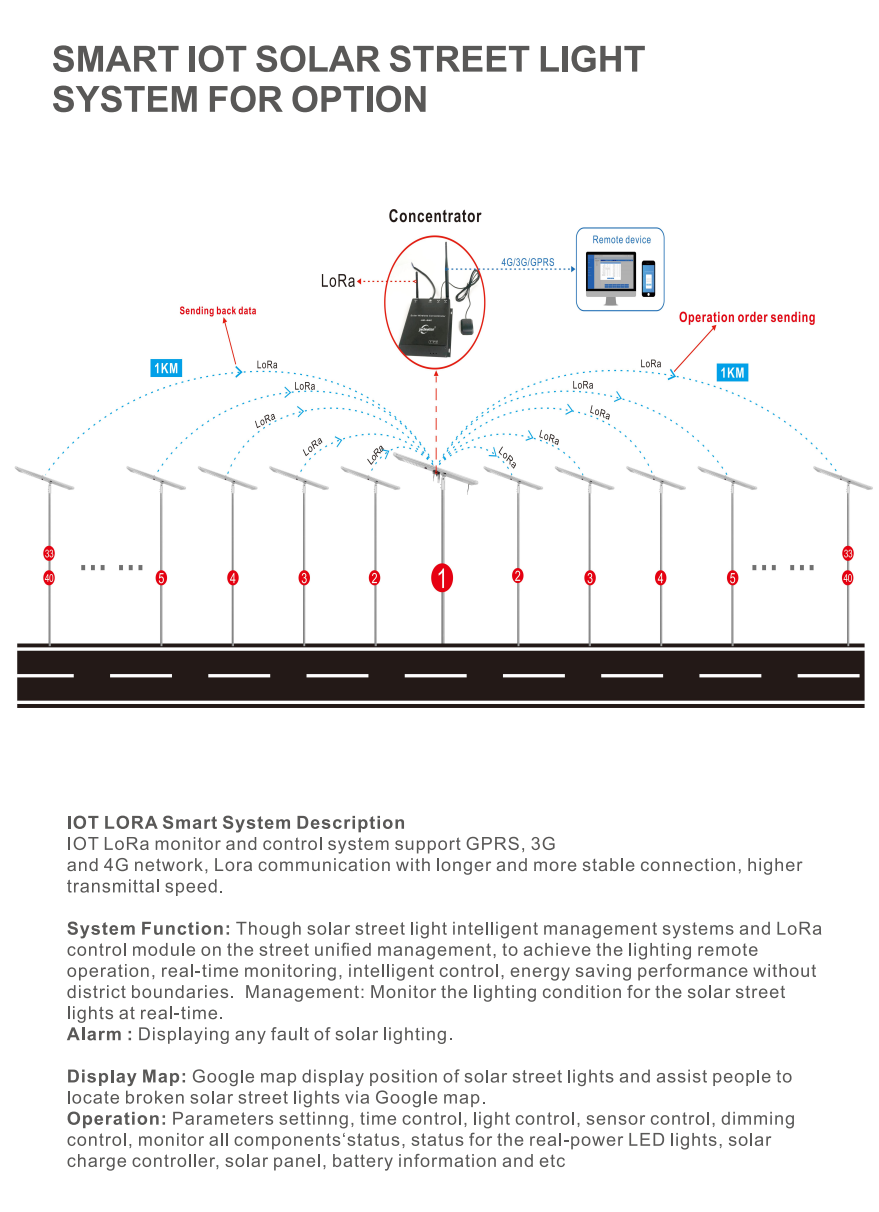

Smart City Solar Street Lighting With IoT Remote Management

Modern public lighting projects require more than basic illumination. Optional IoT functions allow remote monitoring, status checking, and lighting management through connected communication systems. LoRa technology can support larger lighting networks where centralized control and maintenance efficiency are required.

The intelligent controller manages charging, discharging, and lighting schedules according to battery condition and environmental changes. During periods with limited sunlight, programmed lighting modes help balance energy consumption and available battery capacity.

Weather Resistant Outdoor LED Lighting Solution For Long-Term Use

Outdoor lighting equipment must maintain stable performance through changing weather conditions. The IP68-rated structure protects internal components from dust and water exposure, while the durable housing supports long-term installation in outdoor environments.

With its combination of dual solar charging, Philips LED illumination, intelligent control, and durable protection, the double sided solar street light supports smart city lighting, roadway projects, and independent outdoor illumination applications. JSDSolar provides lighting configuration support, including installation planning, brightness selection, communication options, and project requirements.

Product Detals

Technical Data

Technical Parameter
Model	DSC - X5	DSC - X6	DSC - X8	DSC - X10
LED Power	50W	60W	80W	100W
Maxi LED Lumens(lm)	9000lm	10000lm	14000lm	18000lm
CCT	2700 - 6500K
Solar Panel	50W	65W	85W	115W
LiFePO4 lithium battery	384Wh	460.8Wh	537.6Wh	614.4Wh
Controller	10 - 15A MPPT Solar Charge Controller

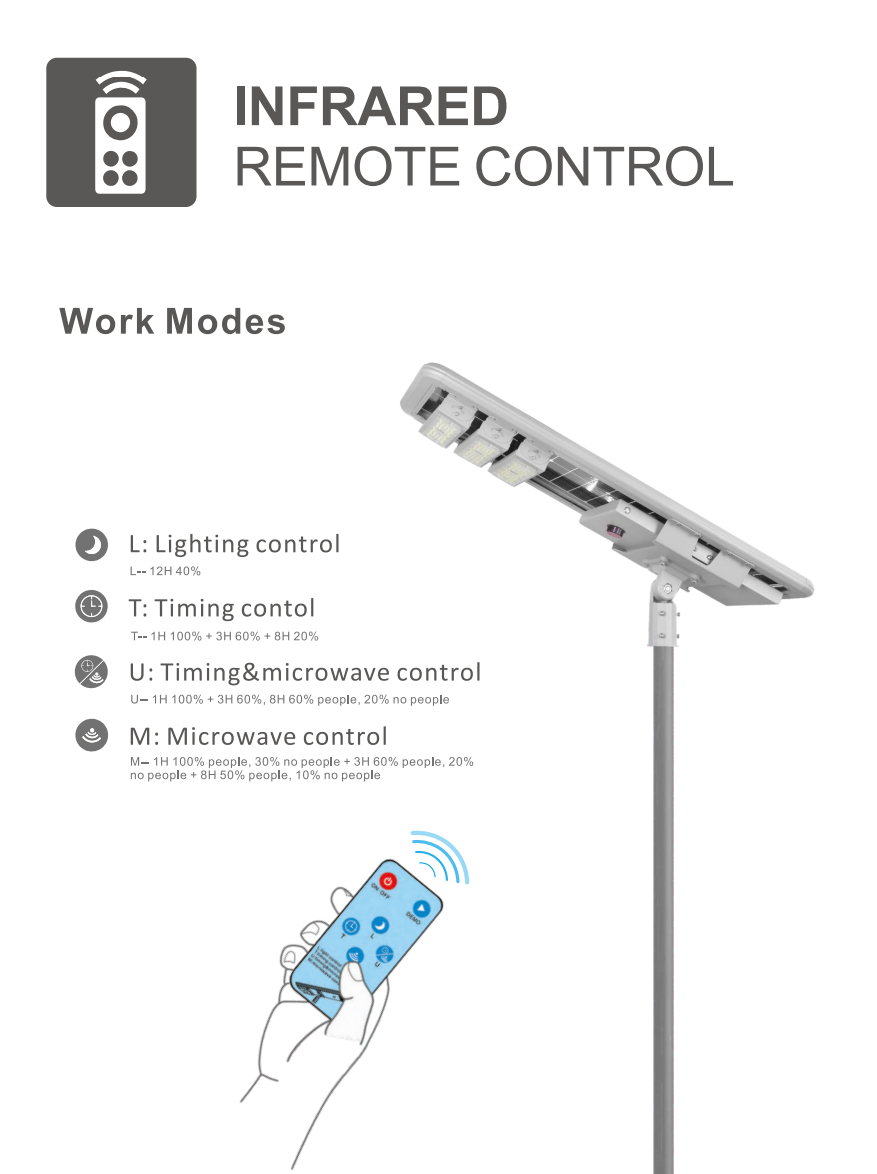

Control Mode	Light Control + Time Control + Sensor Control + Remote Control
Charging Time(1,000W/m2)	6hrs
Working Time	12hrs / night (Programmable)
Installation Height	10~12m
Installation Distance	25~30m
Product Size (mm)	740X500	900X400	1180X400	1535X400
Certification	EMC, FCC, IEC, Rohs, IP66

Common Questions

How do I select the appropriate model for my project's installation height and lighting requirements?
For installation heights of 10-12m, the DSC-X series offers models with varying LED power (50W-100W) and max lumens (9000LM-18000LM). Choose a higher wattage model (e.g., DSC-X10 for 18000LM) for areas requiring stronger illumination. Refer to the technical parameters for detailed specifications .

What is the battery lifespan and warranty coverage for large-scale projects?
The LiFePO4 lithium batteries support over 2000 charge-discharge cycles and come with a 5-year warranty for 90% output power and a 25-year warranty for 80% output power, ensuring long-term reliability for project deployments .

Can the solar street lights integrate with smart city management systems for remote monitoring?
Yes, the optional IOT LoRa system supports GPRS/3G/4G connectivity, enabling real-time remote monitoring, fault alarms, and parameter adjustment via Google map integration. It allows unified management across large-scale projects without regional limitations .

What installation precautions should be taken to ensure optimal performance in project sites?
Ensure solar panels face true south in the Northern Hemisphere or north in the Southern Hemisphere. Avoid shading from structures/trees and prevent artificial light sources (e.g., advertising boards) from triggering day mode. Peel off the solar panel protective film to activate charging .

How does the system perform in extreme weather conditions, and what protection features are included?
The lights have an IP68 waterproof rating and operate in temperatures from -20°C to +60°C. The MPPT controller includes multiple protections (overcharge/over-discharge, short circuit, etc.), ensuring stability in harsh environments .

What technical support is available for large-scale project deployments and maintenance?
JSD Solar provides full digital MPPT control technology (tracking efficiency >99%) and intelligent charge-discharge management. For project-specific needs, contact our team for customized solutions and post-installation support .
