Three-phase Deye 50kW +160kWh (51kWh/64kWh/140kWh/180kWh/200kWh Available) Indoor Battery Energy Storage System

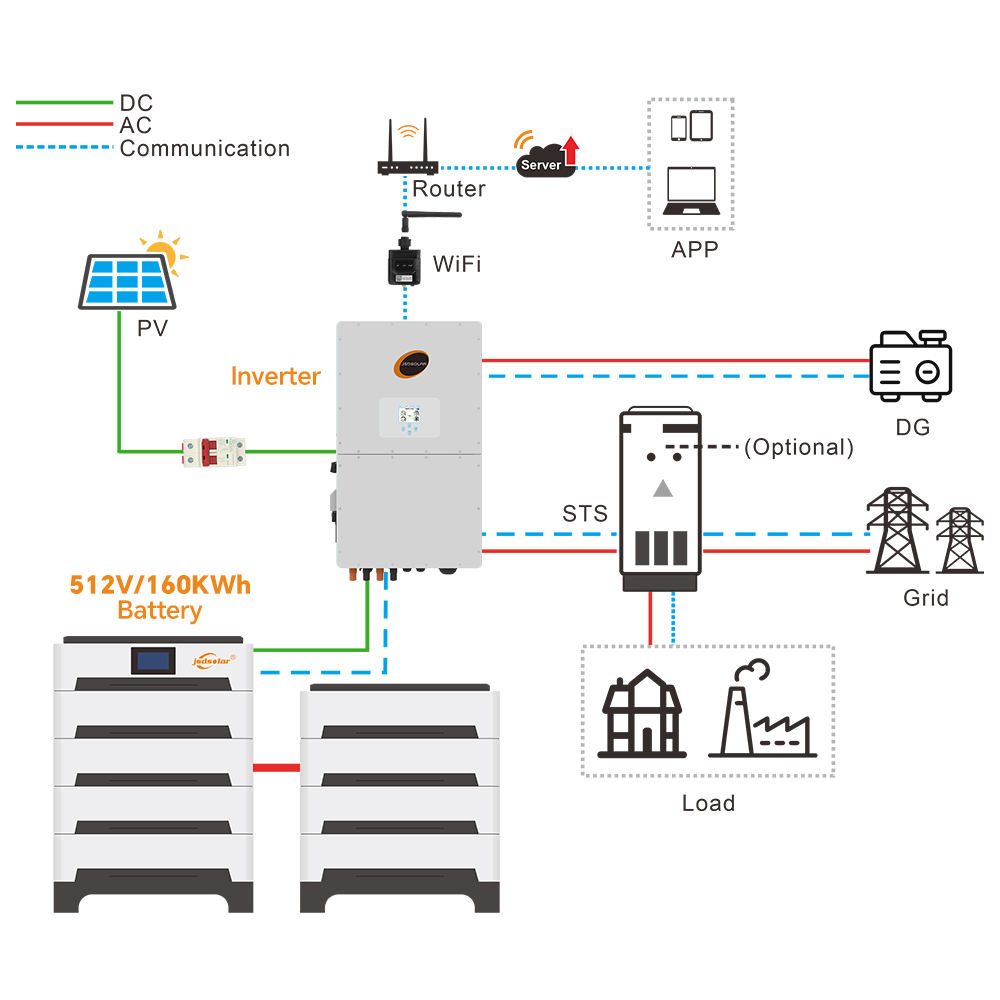

Jsdsolar Deye 50kW & High Voltage Lithium Battery BESS contains a SUN-50K-SGO1HP3-EU-BM4 3-phase hybrid inverter which supports dual output, one bus for important load, other for nomal load. STS module was integrated to ensure seamlessly switch from pv to battery, battery to grid within 8-10ms. It also supports diesel generator through Gen port to maintain important load.
Key Features
- Dual output: one bus for important load, one for normal load
- ATS module integrated to support diesel generator and STS module optional for any application scenario(hospital backup, data center...) requiring switch time less than 10ms
- 512V 314aH high voltage storage battery
- Three layers of protection: overcharging and discharging protection; themal protection; smart EMS
Technical Specifications
Technical Data
| Specification | Description |
|---|---|
| Max PV Input | 65000w |
| Max AC Ouput | 55000w |
| Output Voltage | 3L/N/PE, 220/380, 230/400 Vac |
| Start-up Voltage | 180v |
| No. of MMPT Tracker | 4 units |
| Generator Input Current | 75.8 A |
| Smart Load Current | 200 A |
| AC Coupling Current | 75.8 A |
| Safety EMC | IEC/EN61000-6-1/2/3/4,IEC/EN62109-1,IEC/EN62109-2 |
| Grade | IP21 |
Get Free Quote

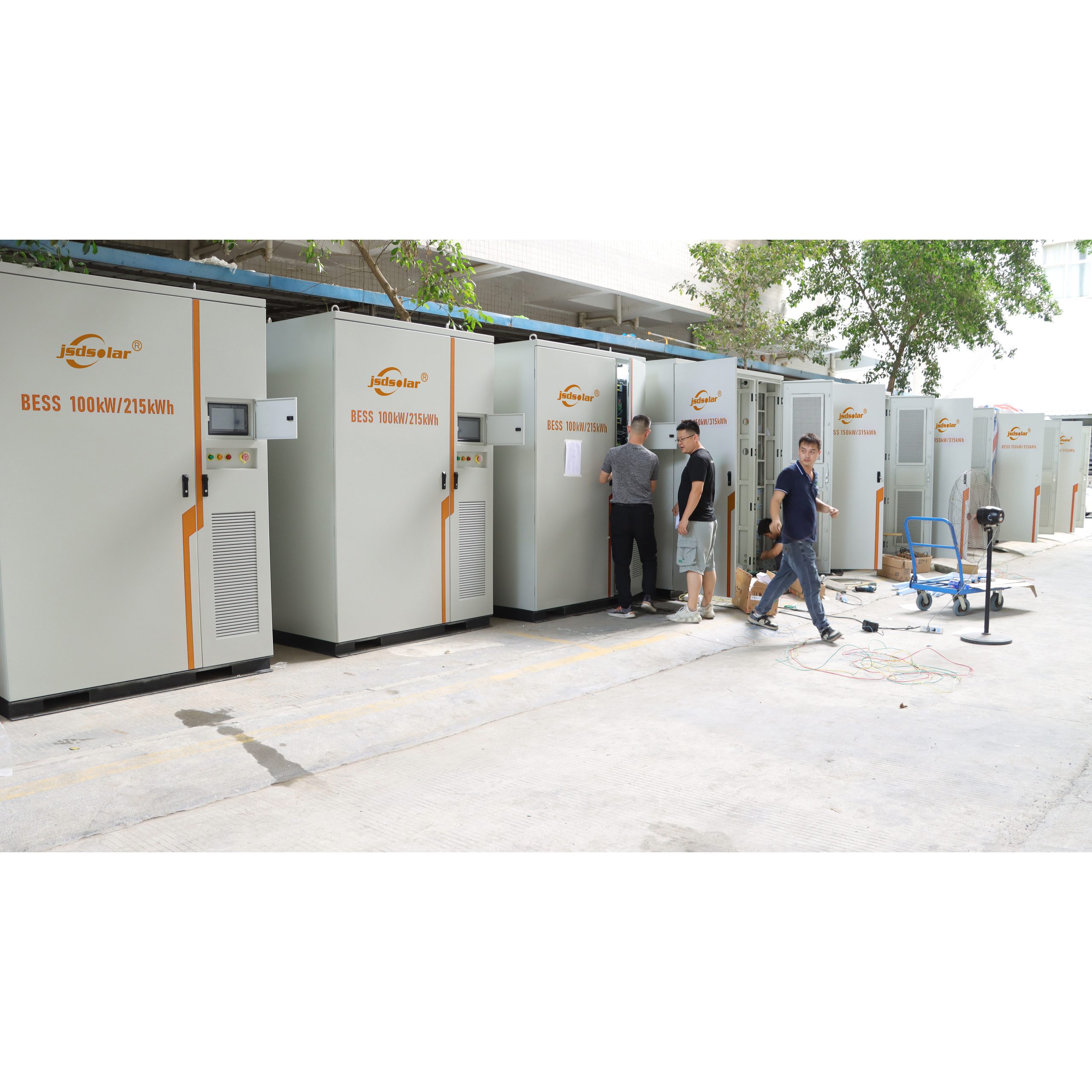

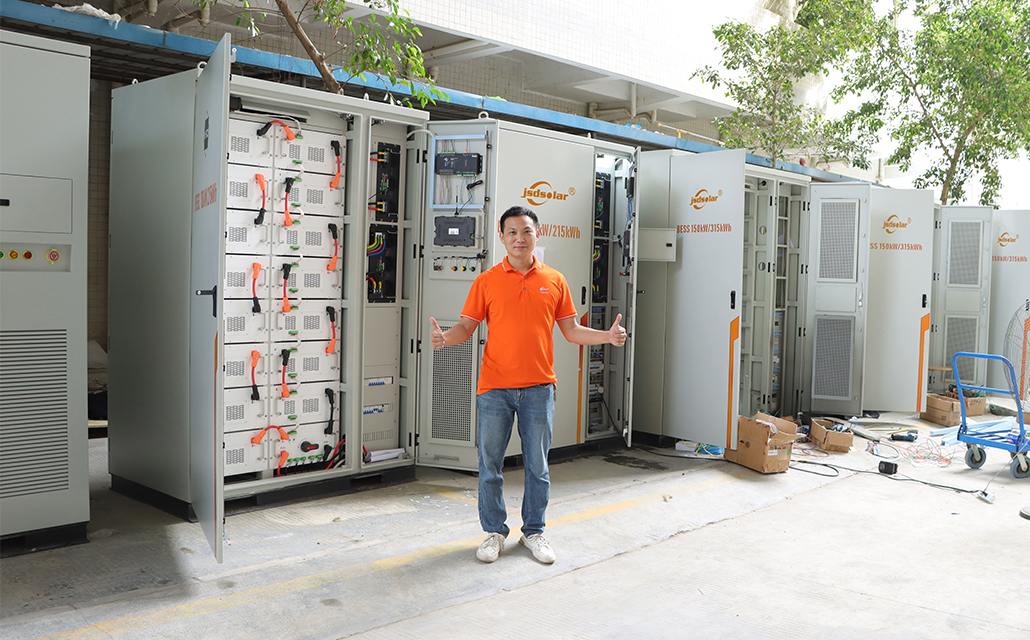

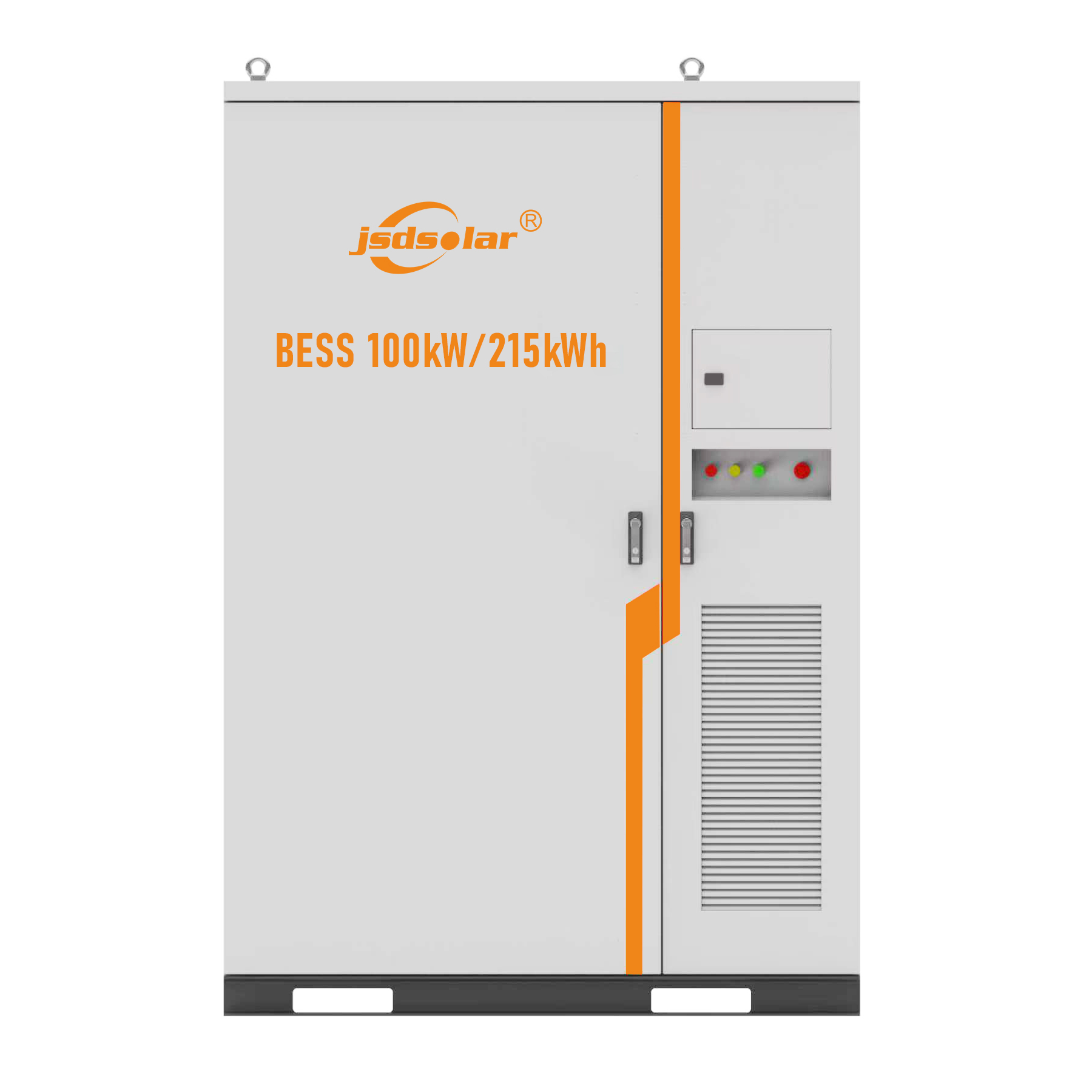

100kW/215kWh Outdoor Power Conversion System (PCS) Battery Energy Stotage System, DC Coupling Mode
The solution adopts Jsdsolar 100kW ESS power module and supports 10 sets in parallel . IP65 protection level, undaunted by high altitude or high salt fog. Compatible with battery cabinets of mainstream battery manufacturers in the market, battery manufacturers do not need additional design, and system integration can be achieved with a simple plug-in. The PCS outside design not only saves space inside the cabinet but also allows maintenance personnel to easily inspect, repair, and replace energy storage modules without disassembling or moving the entire cabinet. At the same time, this solution optimizes power distribution, heat dissipation, and other parts, with a simpler structure and a higher cost-effectiveness for the entire cabinet.
Key Features
- DC/DC Power Module designed for off-grid scenario to charge battery directly
- Peak shaving and valley filling
- Frequency and voltage modulation for grid
- Modular design allows replace energy storage modules without disassembling
- Smart air cooling and heptafluoropropane fire protection
- Smart EMS energy management system
Technical Specifications
Technical Data
| Categories | Specifications | Description |
|---|---|---|
| AC Parameters (off grid) | Max Output Power | 110kW |
| Rated Output Power | 100kW | |
| Rated Voltage | 400VAC | |
| Voltage Range | 340~460V | |
| Rated Current | 144A | |
| Rated Frequency | 50Hz/60Hz | |
| Frequency Range | 45-55Hz/55-65Hz | |
| Cable Connection | 3W+PE (+N) | |
| THDi | <3%(Rated Power) | |
| Power Factor | >0.99(Rated Power) | |
| Power Factor Adjustable Range | 1(settable 0.8Leading~0.8Lagging) | |
| On/Off Switch Time | 15ms(Option) | |
| Max Output Power | 110kW | |
| Rated Output Power | 100kW | |
| Rated Voltage | 400VAC | |
| Rated Frequency | 50Hz/60Hz | |
| Cable Connection | 3W+N+PE | |
| THDU | <1%linear; <5%non-linear | |
| Output Over load | 110kW | |
| DC Parameters | Cell type | LFP-3.2V-280Ah |
| Rated Battery Capacity | 215.04kWh | |
| Nominal Voltage | 768Vdc | |
| Voltage Range | 600V~876V | |
| Charge & Discharge Rate | Max.0.5C | |
| Cooling Method | Intelligent Air Cooling | |
| Max Input Power | 120kW or(30kW+30kW+30kW+30kW) | |
| MPPT | PV Max Input Voltage | 730V |
| MPPT Working Voltage Range | 350~900V | |
| MPPT Working Voltage Range @ Full Load | 450~850V | |
| MPPT Max Input Current | 200A Or (50A+50A+50A+50A) | |
| MPPT Number | 1or 4 | |
| System Parameters | EMS | Support |
| Storage Temperature | -20~55℃ | |
| Operating Humidity Range | 0~95%RH | |
| Ingress Protection | IP54 | |
| Working In Parallel No. | 15 | |
| Communication | RS485,CAN | |
| Dimension(DWH) | 176012482350mm | |
| Weight | 2800KG |
Get Free Quote
About JSDsolar®
Founded in 2005, JSD Solar is a trusted manufacturer and global supplier of advanced solar energy systems for residential and commercial applications.
We specialize in all-in-one and modular solar power systems, including stackable lithium battery cabinets, wall-mounted ESS, and C & I energy storage. With strong R&D capabilities, multiple international certifications, and global warehousing, we support customers with turnkey energy solutions that ensure long-term performance, safety, and cost-efficiency.
18+ Years of Expertise
Established in 2005, trusted by thousands of customers worldwide.
Professional Installation Service
Worldwide Professional Installation Guidance with Competitive Pricing and Considerate Service
Ready to Ship in China
Ample Supply Channels
Certifications & Safety
CE, UL, MSDS, UN38.3, ISO9001 & ISO14001 certified for quality assurance.
Exclusive Jsdsolar BESS Introduction
Our Services
Custom Solar System Design
We tailor system configurations to match your local standards, grid conditions, and installation preferences.
Fast Delivery & Local Installation Support
With warehouses across Asia, Europe, and North America, we shorten lead times and simplify logistics.
Technical Support
From initial consultation to post-installation support, our engineers are always available to assist.
Get Free Quote
Reliable Energy. Anywhere.
Tell us your energy needs — we’ll provide a customized, cost-effective solution in 24 hours.
Get Free Quote
Common Questions
-
01
Which kind of BESS(outdoor or indoor) is recommended?
-
Deye’s indoor BESS solution is more cost-effective, but with constraints: its PV input is capped at 65kW, load power at 50kW, and it has installation limits (e.g., high-temperature and fire safety requirements). It is better suited for large residential loads and small industrial/commercial loads.
In contrast, PCS outdoor energy storage cabinets enable utility scale possible via parallel connection. Unlike Deye BESS, which uses AC coupling, PCS cabinets can charge batteries directly through DC/DC power modules and feature frequency and voltage regulation—making them ideal for regions with unstable power supply. Additionally, PCS outdoor cabinets have few installation constraints, and their modular design simplifies after-sales maintenance.
-
02
What’s a battery energy storage system(BESS)?
-
A battery energy storage system (BESS) stores energy in rechargeable batteries. A system typically has battery cells, modules, racks, inverters, and control systems.
BESS are installed for many reasons, like to support the electrical grid, integrate renewable energy, or provide backup power to critical infrastructure.
-
03
How does your BESS work?
-
Solar PV panels convert light into DC power, processed by DC/DC modules to adjust voltage to the 750V DC bus (matching energy storage) and enable Maximum Power Point Tracking (MPPT) for maximum PV efficiency. Outdoor energy storage cabinets with forced air cooling contain battery packs and a Power Conditioning System (PCS): surplus PV/grid off-peak power charges batteries via PCS during charging, while batteries release DC power (inverted to AC by PCS) during PV shortage/grid outage/peak prices. The PCS-inverted AC connects to a 400V AC bus (an "energy hub") via a transformer, linking a diesel generator (backup for grid outage + insufficient storage), the public grid (for surplus power feed-in or off-peak charging/supply), and loads (priority important loads + general AC loads).
The Energy Management System (EMS) acts as the control core, enabling remote real-time monitoring of PV generation, battery status, grid/diesel operation, and load power, and intelligently scheduling energy flow based on sunlight, grid status, load demand, and price periods—prioritizing PV for loads and storage charging, using storage then diesel during grid outages, and securing important loads by cutting general ones if needed.
Through "PV self-generation + energy storage backup + diesel emergency + grid complementarity", the system maximizes power supply reliability, typical for scenarios requiring high stability like data centers, hospitals, and critical industrial production lines.
-
04
Can your BESS work with other fuel sources?
-
Yes, energy storage systems are technology- and fuel-neutral. Battery systems can be charged by renewable energy sources, or can be charged directly from the grid. Electricity from the grid can be generated by any number of technologies, including renewables like solar as well as oil, natural gas, and mostly diesel.
-
05
Any good do your BESS do for communities?
-
Battery energy storage systems are beneficial for communities because of a whole range of indirect benefits they generate. They support energy independence by reducing local reliance on traditional fossil fuels and imported fuel sources to be reduced, and they also make the power grid more efficient and stable, protecting it from malfunctions or blackouts. Energy storage improves energy security and maximizes the use of low-cost, home-grown renewable electricity.
-
06
How long does your BESS battery last?
-
Batteries typically have a lifespan of at least 20 years, however depending on usage, the batteries may still have usable capacity after 20 years.
